Turnstile system

Mechanically strong as well as technically more reliable.
turnstile system that manages manual and authorized passage through the area.

Contact us

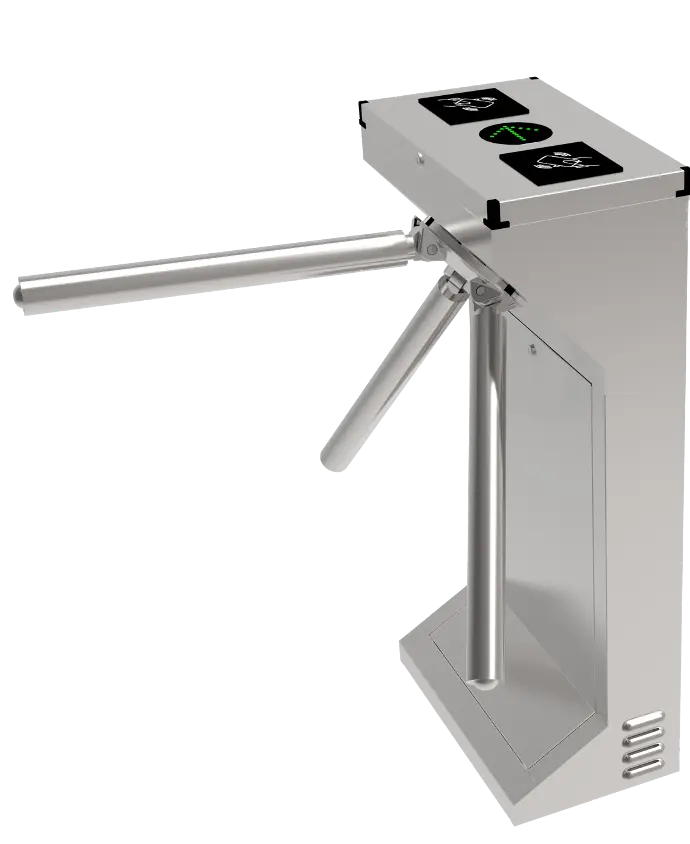

TNS-108 Tripod Turnstile

  • Passage Width >= 550 mm
  • Throughput rate 35p/m
  • Frequency 50-60 hz
  • Dimension excluding bars 480*280*960 mm
  • Temperature -25° ~ 70°
  • Operational Voltage 24 V/(dc)
  • Weight Including bars 42 Kg

Features & Benefits

    • Use of RFID IC card, ID cards, Barcode or magnet ic cards as automatic identification system and achieve access attendance , fees or function.

    • A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

    • Semi-auto mode: After reading card the passenger pushes the arm arrives in home position.

    • Full-auto mode: The passenger pushes the arm at a little strength after reading card,and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.

    • Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

    • Single or bi-directional function in mechanical and electrical versions.

    • Automatic reset of barrier arms after each passage.

    • Cable or wireless remote control panel key override control for emergency situations .

    • Automatically arm drop down when power off or emergency.

    • Adjustable time out delay.

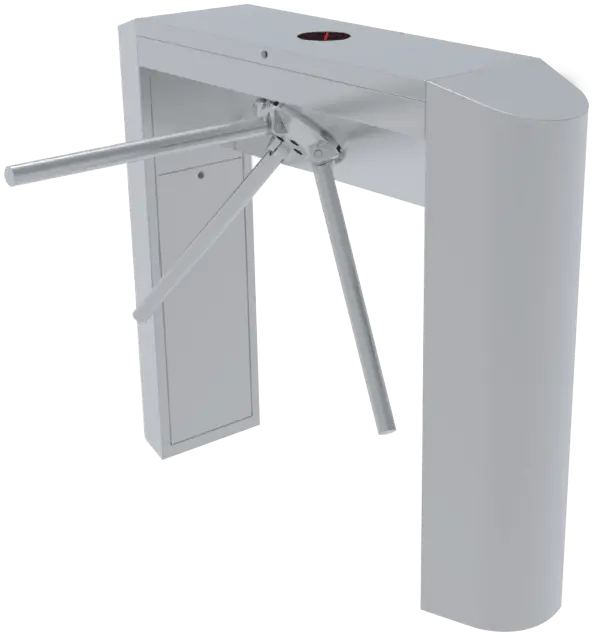

TNS-243 Tripod Turnstile

  • Passage Width >= 550 mm
  • Throughput rate 35p/m
  • Frequency 50-60 hz
  • Dimension excluding bars 1200*280*980 mm
  • Temperature -25° ~ 70°
  • Operational Voltage 24 V/(dc)
  • Weight Including bars 35 Kg


Features & Benefits

• Use of RFID IC card, ID cards, Barcode or magnet- ic cards as automatic identi􀃶cation system and achieve access attendance , fees or function.

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Semi-auto mode: After reading card the passenger pushes the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card,and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations .

• Automatically arm drop down when power off or emergency.

• Adjustable time out delay.
